Today, Dr. Chai will delve into the core tool of mining — the mining rig. From the early days of home computer CPUs to today's specialized ASIC miners, how has mining hardware evolved? How do you choose a mining rig? This article will answer all your questions and take you into the hardware world of "digital prospecting"!

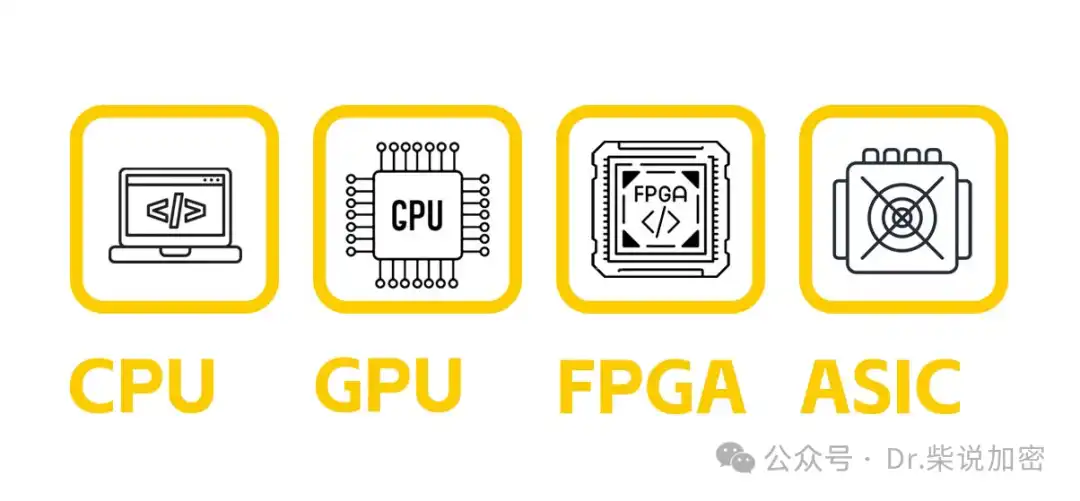

01 Evolution of Mining Hardware: From Home Computers to Professional Mining Farms

Bitcoin was born in 2009, and the development of mining hardware has gone through several stages. Let's travel through time to see this hardware revolution:

1 CPU Era (2009-2010): Mining with Ordinary Computers

· Background: When Bitcoin was first launched, its founder Satoshi Nakamoto could mine with a regular computer's CPU (central processing unit).

· Features: At that time, the network's computing power was low, and a regular laptop could mine Bitcoin. For example, in 2010, someone mined over a thousand BTC with a home computer (now worth hundreds of millions of dollars!).

· Limitations: CPU mining power was weak, efficiency was low, and as mining difficulty increased, CPUs quickly fell behind.

2 GPU Era (2010-2013): The Rise of GPU Mining

· Background: Miners found that GPUs (graphics processing units, such as NVIDIA, AMD cards) were stronger in parallel computing than CPUs, making them suitable for mining hash functions.

· Features: GPU mining efficiency increased tens of times, attracting more people to join.

· Limitations: GPUs consumed a lot of power, had challenging cooling requirements, created significant noise in home mining setups, and their computing power was still limited.

3 FPGA Era (2012-2013): Transition Phase

· Background: FPGAs (field-programmable gate arrays) are customizable hardware more efficient than GPUs but require specialized knowledge to configure.

· Features: Lower power consumption than GPUs, stronger computing power, but expensive and less widespread.

· Limitation: FPGA is a transitional technology quickly replaced by more efficient ASIC.

4 ASIC Era (2013-Present): The Dominance of Professional Mining

· Background: ASIC (Application-Specific Integrated Circuit) is a specialized chip designed for a specific algorithm (such as Bitcoin's SHA-256, Dogecoin/Litecoin's Scrypt), far surpassing GPUs and FPGAs in performance.

· Characteristics: ASIC mining rigs are powerful and efficient, becoming the mainstream of modern mining.

· Current Status: By 2025, ASIC mining rigs dominate Bitcoin, Dogecoin, and Litecoin mining, rendering household devices nearly non-competitive.

>  Summary

From CPU to ASIC, the evolution of mining hardware has been a leap in both computing power and efficiency, but it has also raised the barrier to entry. Today, professional mining rigs are mainstream, yet individuals can still get started with some Altcoin GPU mining.

02 Overview of Mainstream Mining Rigs: The Tools for Bitcoin/Dogecoin/Litecoin

By 2025, there are various mining rigs available on the market tailored to different cryptocurrencies (such as Bitcoin's SHA-256 algorithm, Dogecoin/Litecoin's Scrypt algorithm). Here are the performance, price, and power consumption details of several mainstream mining rigs, based on the latest market information.

1 Bitcoin Mining: SHA-256 Algorithm Rigs

These rigs are specifically designed for Bitcoin (BTC), Bitcoin Cash (BCH), and other SHA-256 algorithm-based coins, offering robust performance but at higher prices and power consumption.

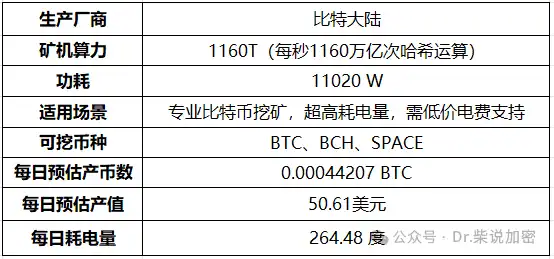

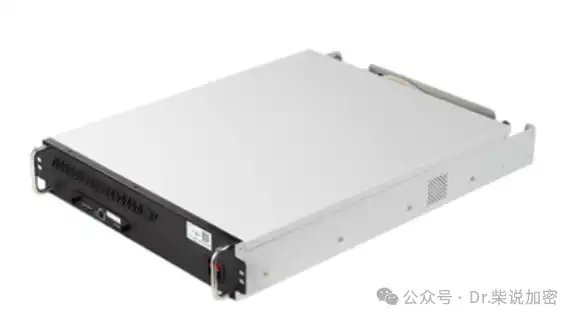

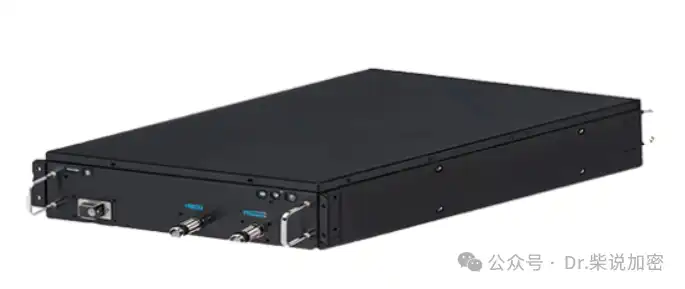

· Antminer U3S23 Hyd.

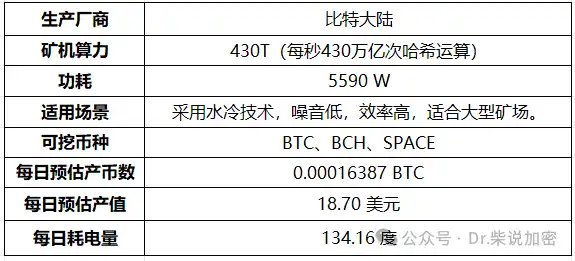

· Antminer S21e XP Hyd.

Note: The above estimated data results are applicable only to mining in PPS mode. Due to factors such as mining machine and mining farm electricity, mining revenue may vary, so the calculated results are for reference only.

2 Dogecoin and Litecoin Mining: Scrypt Algorithm Rigs

Dogecoin (DOGE) and Litecoin (LTC) use the Scrypt algorithm, which has lower computational requirements compared to SHA-256, making it suitable for small to medium-sized miners.

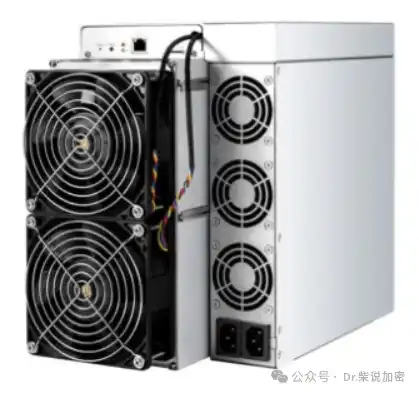

· ElphaPex DG2+

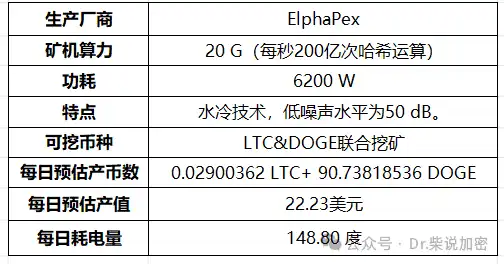

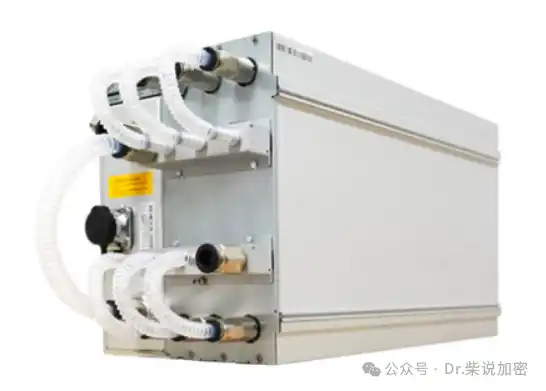

· ElphaPex DG Hydro 1

Note: The above estimated data results are based on mining in the current difficulty PPS mode. Mining profitability is influenced by factors such as mining machines and mining farm electricity, so the calculated results are for reference only.

03 Mainstream Miner Performance Comparison

Below is a performance comparison of mainstream miners in 2025, covering Bitcoin and Dogecoin/Litecoin miners:

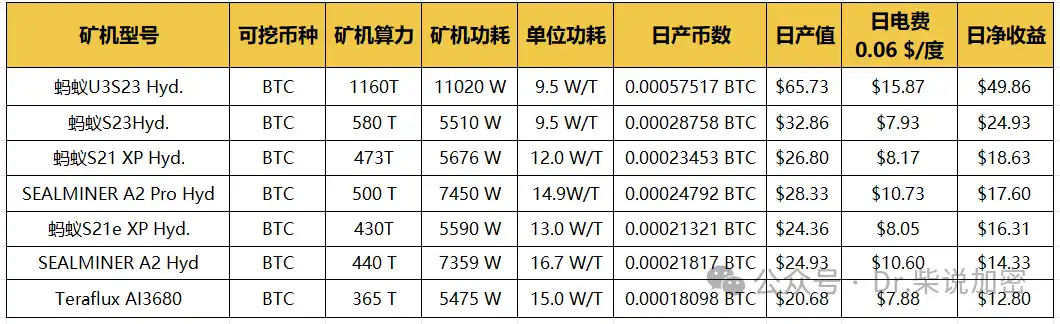

>  Bitcoin Miners

Data Source: F2pool

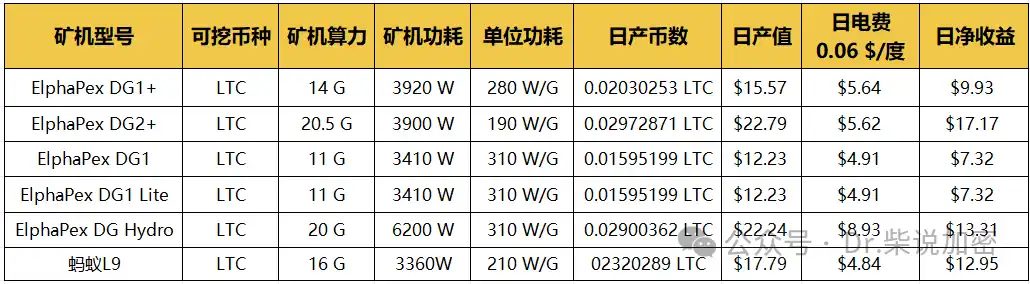

>  Dogecoin/Litecoin Miners

Data Source: F2pool

Notes:

· Low unit power consumption implies high efficiency: Unit power consumption indicates the energy consumed by a miner to generate a certain hashrate. Lower power consumption means the miner uses less electricity to complete the same computational tasks, resulting in higher energy efficiency.

· Directly impacts mining costs: One of the main costs of mining is electricity. Miners with low unit power consumption consume less electricity at the same hashrate, reducing the mining cost per unit hashrate and thus increasing economic benefits.

· Environmental sustainability: Lower unit power consumption means less energy waste, resulting in less environmental impact and aligning with the trend of energy efficiency and emission reduction.

04 Cryptocurrency Mining Advice

Reminder: Engaging in cryptocurrency mining activities should be done in compliance with local laws and regulations.

Choosing a mining rig requires considering your budget, electricity costs, mining goals, and site conditions. Here are some suggestions for your reference:

1 Define Your Mining Goal:

Interested in mining Bitcoin? Choose a SHA-256 miner, but be prepared for a high budget and low electricity costs.

Low-power Scrypt miners are more suitable for beginners.

2 Calculate Costs and Returns:

Use a mining profitability calculator to estimate the payback period.

Electricity cost is key: Electricity cost> $0.15 per kWh may lead to losses. It is recommended to choose regions where electricity costs are <$0.08 per kWh.

3 Consider Site and Noise:

For home mining, choose low-noise equipment (such as water-cooled devices) or GPUs. Professional miners require dedicated space or mining farms.

All mining rigs require regular maintenance, and attention should be paid to the safety of electrical equipment.

4 Watch Market Fluctuations

The market prices of Bitcoin, Dogecoin, and Litecoin will directly impact mining returns.

In high-volatility scenarios, professional miners can hedge future income through hedging strategies.

Choose a multi-coin mining pool to flexibly switch to high-yield coins.

05 Summary: From CPU to ASIC, the Future of Mining Hardware

From CPU mining at the birth of Bitcoin in 2009 to the current dominance of ASIC miners, the evolution of mining hardware has not only witnessed the rapid development of the cryptocurrency industry but has also profoundly changed the rules of the "digital gold rush."

Early on, ordinary individuals could participate in Bitcoin mining using their home computers, easily earning "digital gold." Today, Bitcoin mining has become the stage for professional players, with ASIC miners being the standard equipment for large mining farms and professional miners. This specialized hardware optimized for Bitcoin's SHA-256 algorithm provides unparalleled performance, but its high costs and professional operational requirements deter ordinary individuals.

Meanwhile, cryptocurrencies like Dogecoin and Litecoin, based on the Scrypt algorithm, have reserved a space for newcomers. GPU mining and entry-level Scrypt miners offer lower costs and flexibility, attracting players with limited budgets or those who are just starting out. The "meme wealth" charm of Dogecoin and the stable ecosystem of Litecoin make these currencies an ideal choice for small-scale mining.

Looking ahead, the trend of mining hardware will become more diversified:

· Efficiency Improvement: The next generation of ASIC miners will further optimize energy efficiency, reduce the power consumption per unit of hash rate, and may use more advanced chip technology.

· Green Mining: As environmental controversies intensify, mining machine design will pay more attention to compatibility with renewable energy sources, such as hydroelectric, wind, or solar power, to reduce carbon footprint.

· Home Mining Renaissance: With the development of low-power devices, there may be more Scrypt miners suitable for home environments in the future, allowing ordinary people to easily participate in Dogecoin or Litecoin mining.

· Decentralization Challenge: The high barrier of entry for ASICs concentrates hash power in large-scale mining farms. In the future, new hardware or algorithms may emerge to encourage more individual miners to participate, maintaining the blockchain's spirit of decentralization.
